Fagor Dryers

Fagor Dryers

This note covers reader installation on Fagor and Domus Dryers . The reader uses pulse control.


Parts

  • Reader (with Generic Relay board - ASSY-02-02-11)
  • Cable harness

Installation

  1. Before proceeding, you should assign numbers to each of the machines in the laundry room/building. It is highly recommended that you place number labels on each washer and dryer machine.

  2. Set the DIP switch to number the reader. See Reader DIP Switch settings

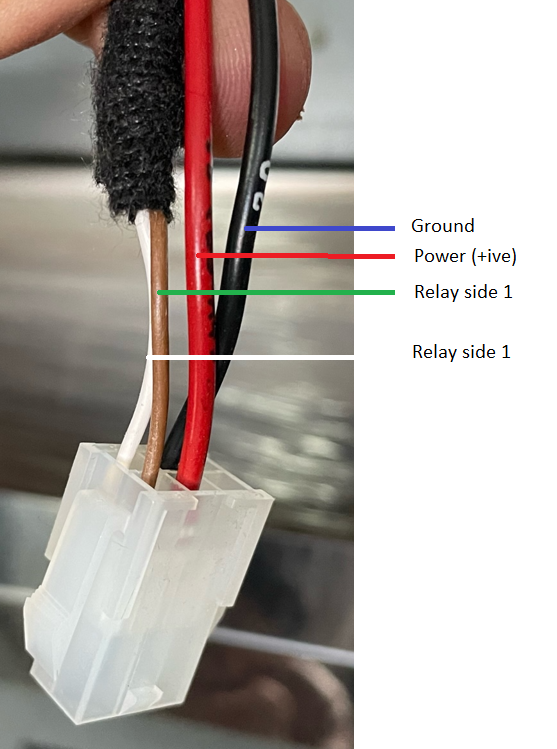

  3. Locate the coin-drop 4-wire connector
    Plug the the mating connector from the reader harness directly to it.

    If for some reason the reader cable harness does not have a perfect mating connecting, you can splice the wires as follows

Pricing

Set the pricing on the LaundroPortal.
