Maytag - Mechanical machines

Maytag - Mechanical machines

This article is applicable to Maytag machines without electronic controls, such MFR80PCAVS


Required parts

  1. Reader
  2. Cable Harness
  3. 12V Power supply
  4. High voltage relay

Installation Steps

Step 1: Turn Machine Power Off

Step 2: Remove coin-drop

Step 3: Number the reader using the DIP switch


Step 4:  Connect the High Voltage Relay

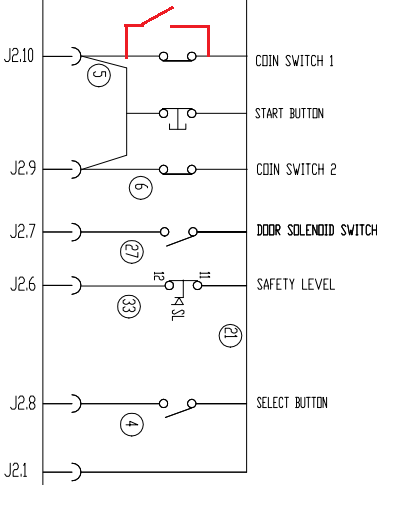

The output wires of the High Voltage Relay should connect across the wire going to J2.10 (wire 5) and Neutral (wire 21)


Pricing

Vend pricing is set on the reader using the LaundroPortal. The reader sends one pulse. Configure the machine to start the cycle with one pulse (e.g set cycle cost to $0.25)
