This installation covers Wascomat Crossover Dryer (Crossover dryers use the same control as ADC Phase 5 dryers). The reader for these dryers use a basic pulse interface to add dry time when the card is presented.

Parts

  • Reader
  • Backplate
  • Cable harness
  • 12V power supply (for Encore dryer)

Installation

  1. Before proceeding, you should assign numbers to each of the machines in the laundry room/building. It is highly recommended that you place number labels on each washer and dryer machine.

  2. Set the machine type and number using the DIP switch on the back of the reader



    See DIP switch settings page

  3. Turn machine power OFF!

  4. Remove the coin drop if present

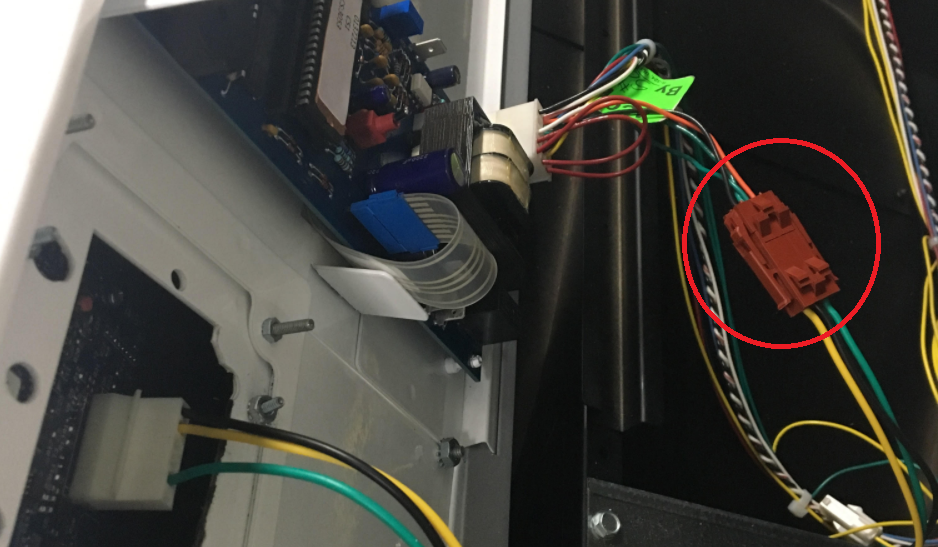

  5. Connect the cable harness between the reader and the red 3-wire connectors



  6. Splice the provide 12V power supply to 110V/220Vac and connect the 12Vdc plug to the mating plug on the harness

  7. Proceed to secure the reader to the machine using the nuts

  8. Activate the card reader with the store's Activation Card:


Pricing

Set the pricing on the reader using the LaundroPortal. Only a single price is supported. Whenever the card is presented, the reader will deduct this amount and send a pulse to the machine.
