Required parts

1. Reader

2. Cable harness

3. 12Vdc power supply

4. High-Voltage sensor box (for sensing machine state/availability)


Installation Steps

See Reader DIP Switch settings

Step 4:  START wires connection

Open the machine and locate the brown wires with female spade connectors as shown below. There should be BLUE wires coming from X9-7 and X9-11 on the machine; these wires may be loose or going to an existing coin drop. Disconnect from the coin-drop if needed.  Connect these two blue wires to the White and Green wires (called the START wires) on the provided cable harness (not shown)

On L1125, L1075

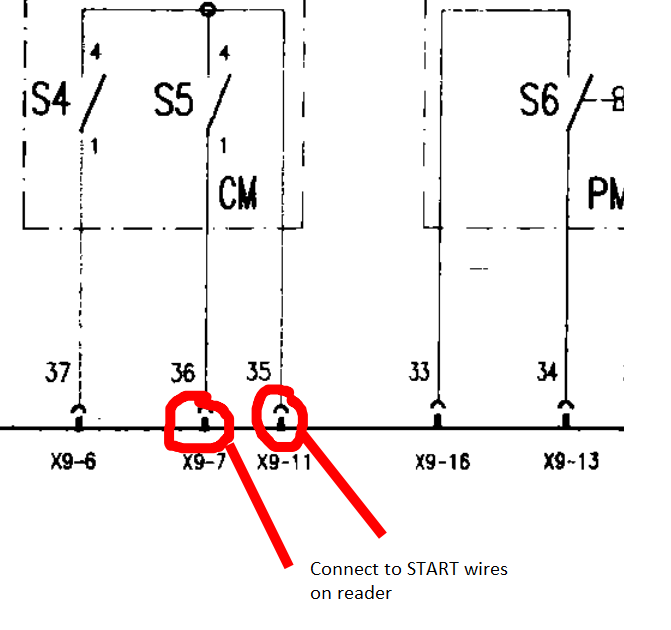

Machine Schematic - Coin Switch Inputs

On L1040, the wires might be 37 and 38

Step 5:  High voltage sensor connection

Locate the two blue wires with female spade connectors with as shown in the step above. These wires tie back to a 230Vac In-Use signal and will enable the reader to know when the machine is and is not available for payment. Connect these wires to the two red wires from the provided High Voltage sensor box.

Step 6: Reader Power Connection

Connect the 120Vac side of the power supply, either to an available wall outlet, or splice the power supply directly to the machine, using an appropriate high-voltage connection inside the machine.

When connecting to the machine directly, you'll be cutting off the AC prong, and splicing these wires directly to the machine (we recommend consulting the manufacturer, or an electrician, to confirm this type of connection).

Step 7: Mount the reader to into the place where the coin-drop would normally mount.

Vend pricing
