Alliance: V-computer washers (SCxxVC)
This article covers installation of readers on Alliance washers (Speed-Queen, Huebsch) with the V-computer controls. These typically have model numbers SCxxVCVQU1
Required parts
- Reader (model CR-11-117-22. The board should be ASSY-02-02-11 (Generic Relay))
- Cable harness
- 12V power supply
Installation Steps
Step 1: Turn Machine Power Off
Step 2: Remove coin drop
Step 3: Number the reader using the DIP switch
Step 4: Connect cable harness

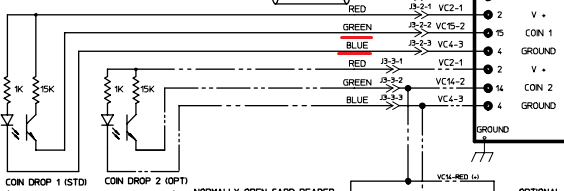

The reader's START wires (white and green) should connect between Coin1 and Ground on the machine control board:

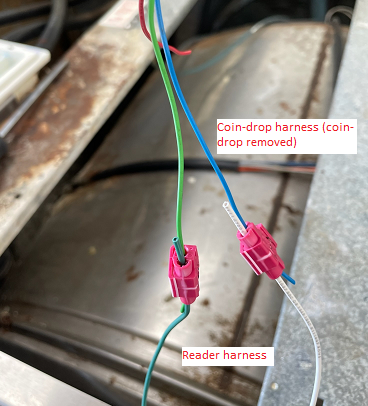

You can simply re-use the existing wire harness from the coin-drop, and splice into the Green and Blue wires like this:
Step 5: Connect power supply
Step 6: Mount the Reader
No drilling is required.
Step 7: Activate the Reader
Use the provided Activation Card to active the reader:
Setting Vend Prices
Pricing is controlled by the reader and is configured through the web Portal. See
Vend Prices article
Troubleshooting
Below are problems that are sometimes encountered with this machine. For more general reader troubleshooting, see
Reader Support Process
Issue
| Explanation and resolution
|
Cycle not starting | Ensure to change the washer's settings such that it starts with one pulse. In other words, change the price to 25cents or less.
|
