Overview

The system is comprised of card readers and one or two Value Add Center (VAC) kiosks.
The readers are wirelessly networked to VAC01, which contains the wireless gateway for the reader.
The wireless technology uses proprietary protocols and is built-into the system, requiring no extra components or any configuration, enabling a plug-and-play installation.

The order of installation makes no difference.
However, when you're activating the readers, using the Activation card (read below), it is recommended that you have the primary VAC (which should be labeled VAC01) power-up and connected to the internet.
If installing a VAC equipped with a touch screen, you can find out which is VAC01 by powering the VAC on and placing a Property Management Card in the VAC's card holder.

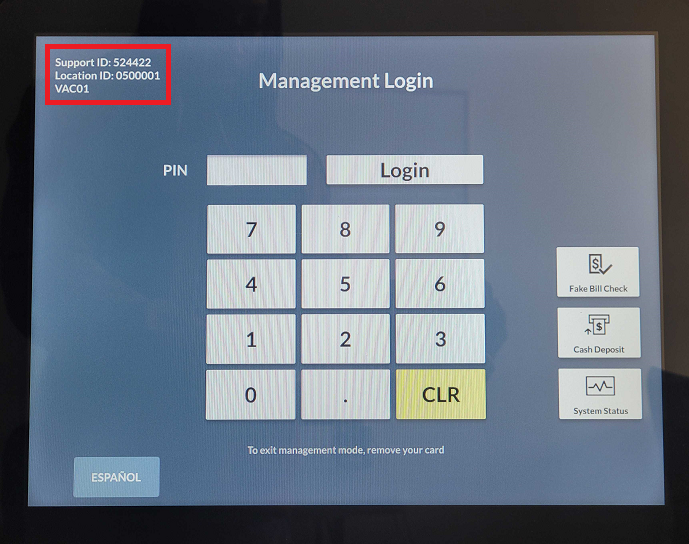

The VAC will present you with a Management Login screen, and in the top left hand corner, you will find the VAC## as well as the Support ID and Location ID:


Value Add Centers (VAC) Installation

Just mount the VAC kiosk, and provide power and internet.
Rear-opening VACs might be shipped with mounting brackets attached to the inside of the cabinet, this is only for shipment purposes.
For drawings and dimensions, see here: Drawings and Dimensions

Power

Inside the VAC there is a power strip which powers all the VAC's electronics.
If the AC cord from this power strip does not reach your outlet, use an extension cord. Do not modify anything inside the VAC.

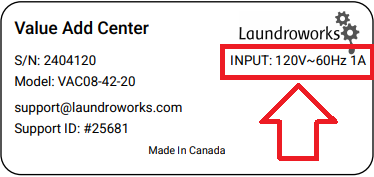

Power requirements for the VAC are usually posted on a sticker that'll be found on the inside of the VAC cabinet:


Internet

Each VAC needs wired internet (ethernet) from a local internet equipment such as a modem, router, or switch.

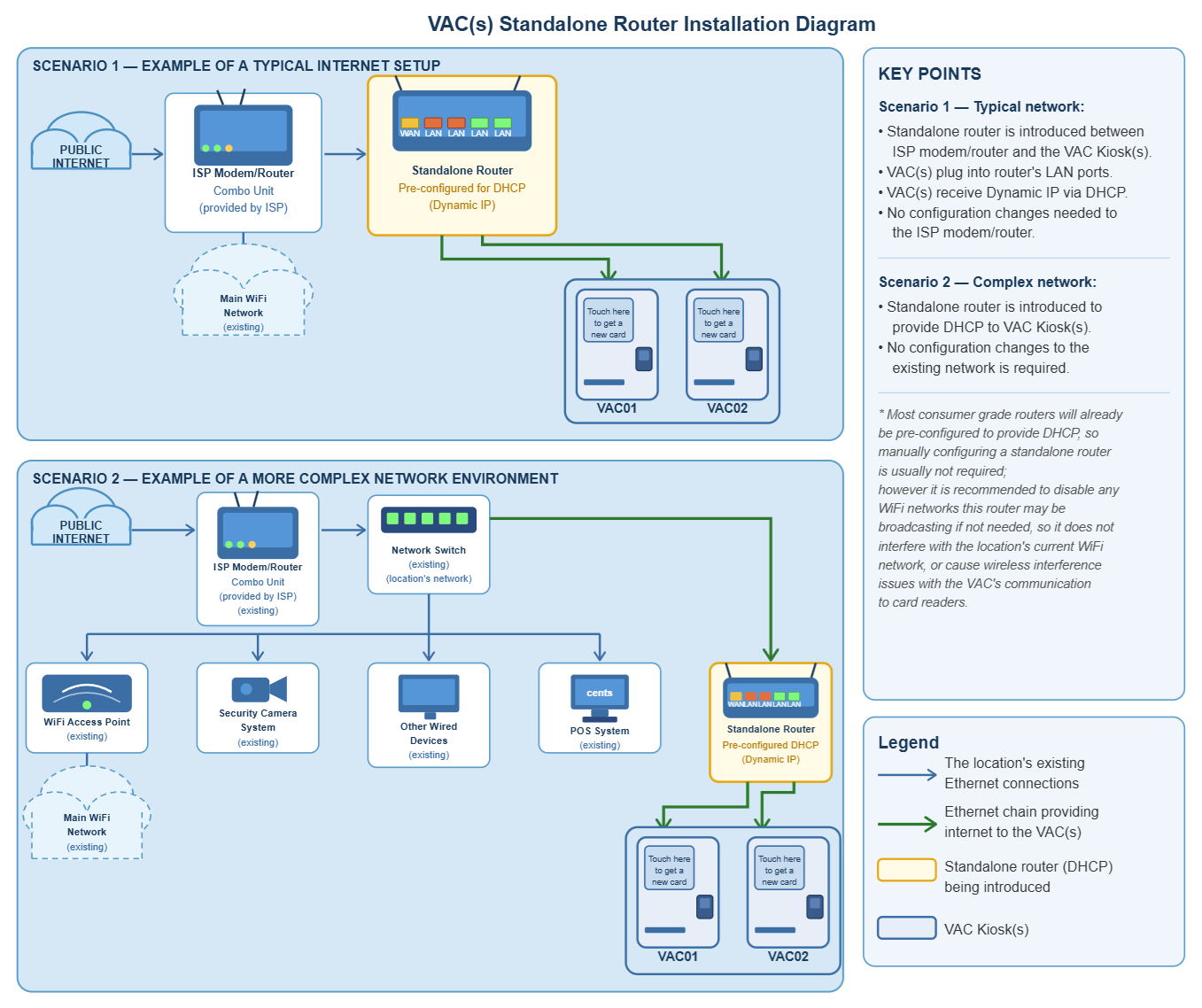

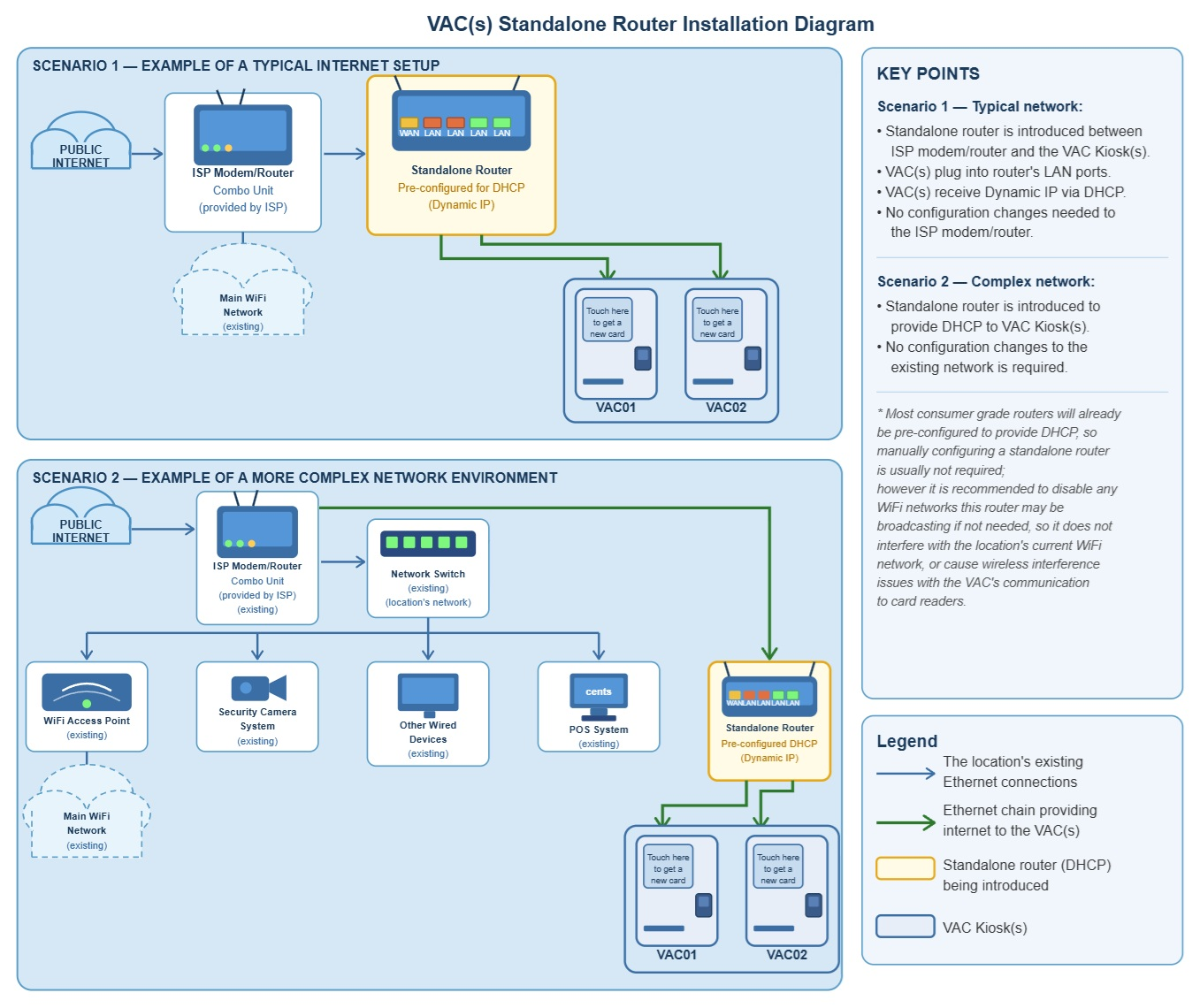

The recommended internet setup is: Modem -> Router -> VAC(s); however it most cases you can also hook up the VAC(s) directly to the internet Modem, or use a network switch if you need to provide internet to more than 1 VAC.
The recommended min internet speed is 10Mbps.

The VACs require Dynamic IP (DHCP); do NOT use a Static IP for the VAC kiosks.
The Internet port on the VAC control board will be labelled "LAN".


Credit Card Terminal Activation and VAC board connection

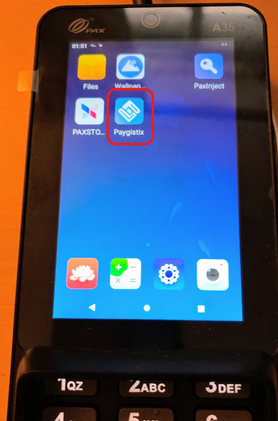

For systems that accept credit/debit cards, you may need to activate the terminal.
Credit Card terminals are shipped to the customer directly from their payment processor.

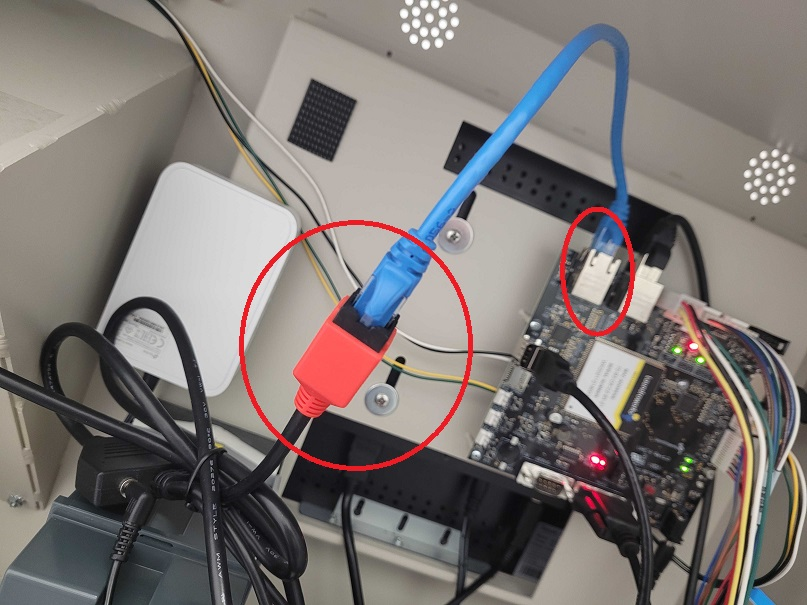

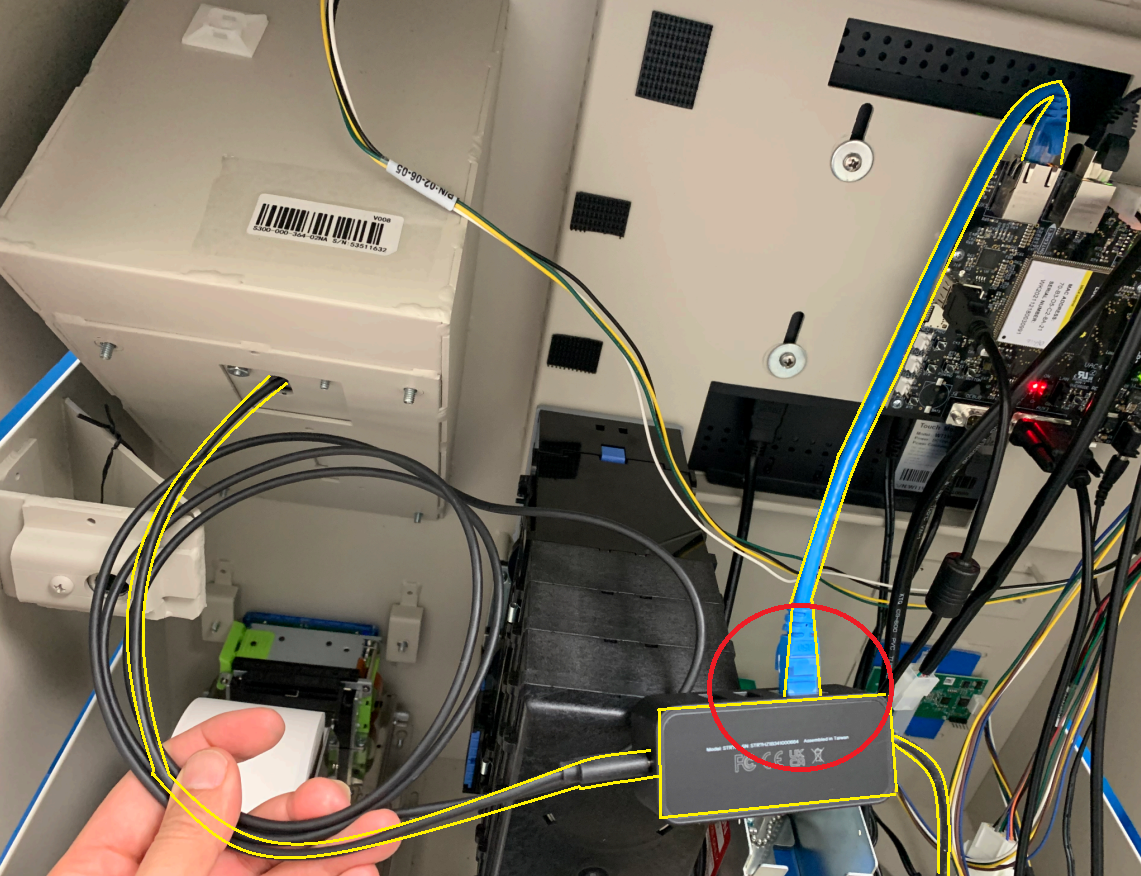

The PINpad terminal's ethernet cable (Red Connector) needs to be plugged into the ethernet port on the VAC control board, labelled "AUX1"


The PINpad terminal's only require 2 cables to be fully connected:
  - the power cable for the PINpad
  - the PINpad's ethernet cable.
All other cables on the PINpad's harness are not used in our system at all.
For more detailed instructions, please review our article: Installing PINpad Terminals

Readers Installation

For reader installation, review the specific machine control article from our Reader Support section

In summary, the steps are:
1. Set the DIP switch on the back of every reader to give the reader a unique address (e.g. Washer 4 or Dryer 43).
See our article on: Reader DIP Switch settings for more information
2. Mount the reader to the machine
3. Configure the laundry machine for serial card reader communication mode (if applicable - see reader installation instructions for your specific machine)
4. Apply the supplied Activation card to activate the card reader
5. On most machines, you set the prices of the reader through the web Portal. See our article on Setting Vend Prices for more information
On some machines, the reader's get their vend prices directly from the machine itself, this will be noted in the specific reader installation instructions for the type of machine you are installing.
Our readers do NOT affect cycle times, so set the desired drying time/wash cycle time, on the actual machine itself.

To test the reader's once they've been installed and activated, you can use one of the Property Management Cards to start the machine:


This card will start any machine for free, so you don't need to worry about adding value onto this card in order to run your tests.

Web Portal

The web Portal ( portal.mitechisys.com ) is the main management tool for the Laundroworks system.
Access credentials should have been provided to the owner through e-mail.
If you cannot find your access credentials, contact support@laundroworks.com.

Use the web Portal to view reports and diagnostics, configure promotions, set vend prices, and more

Support

1-888-629-8620

When contacting us, please provide the Support ID for the store or account.
The support ID should have been sent through e-mail, but it is also shown on the Value Add Center's display when it is booting, or when a management card is placed into the VAC card holder (on touch screen equipped VACs only).

Support ID can be found when logged into the Laundro Portal:

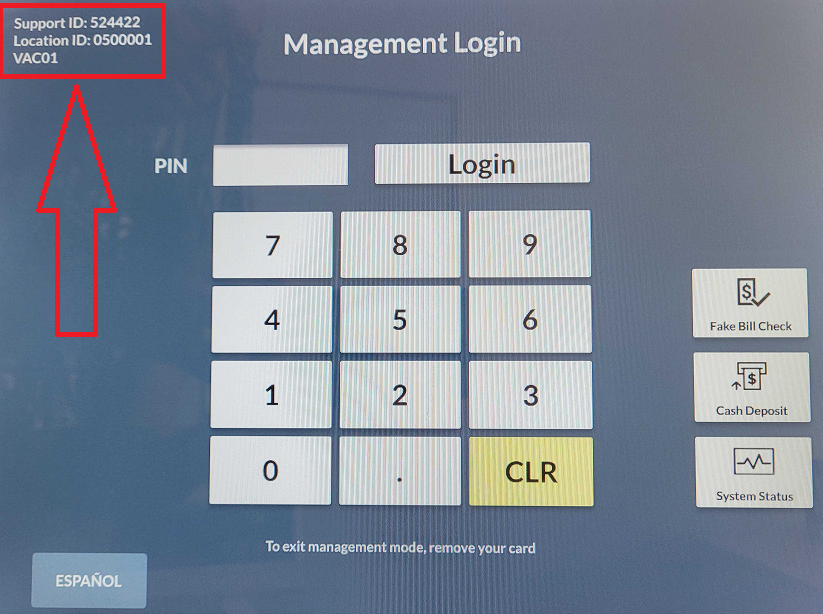

Support ID will be shown on a VACs equipped with a touch screen, when a management card is placed in the VAC card holder:
